Supplementary Article/Info 2
|

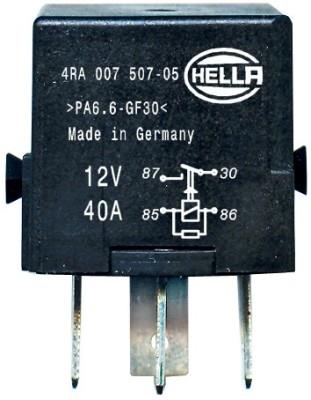

Mini Relay |
|
Supplementary Article/Info 2
|
with lock tab |
|
Supplementary Article/Info 2
|
with resistor |
|
Supplementary Article/Supplementary Info
|
without holder |
|
Protection Type (IP Code)
|
IP54 |
|
Voltage [V]
|
12 |
|
Temperature range from [°C]
|
-40 |
|
Temperature range to [°C]
|
85 |
|
Colour
|
black |
|
Inductive Load [A]
|
40 |
|
Ohmic Load [A]
|
40 |
|
Number of pins
|
4 |
|
Wiring Diagramme
|
S2 |
|
Combi Switch Function
|
Normally Open Contact |
|
Plug Type ID
|
B3 |
|
Relay function
|
Comfort Equipment Variant (trim package) |
|
Relay function
|
park distance control |
|
Relay function
|
ABS |
|
Relay function
|
Low Beam |
|
Relay function
|
High Beam |
|
Relay function
|
Heated rear window |
|
Relay function
|
ESP |
|
Relay function
|
Window Regulator |
|
Relay function
|
Starter |
|
Relay function
|
Klaxon |
|
Relay function
|
Air Conditioning |
|
Relay function
|
Light switch |
|
Relay function
|
Fan, heater/air conditioning |
|
Relay function
|
Interior Blower |
|
Relay function
|
Clamp 15 |
|
Relay function
|
Daytime Running Light |
|
Relay function
|
Convertible Top Hydraulics |
|
Relay function
|
Central Locking |
|
Relay function
|
ABS recovery pump |
|
Relay function
|
Exterior Rearview Mirror Adjustment |
|
Relay function
|
Heatable exterior mirror |
|
Relay function
|
Electric booster heater |
|
Relay function
|
Interior Lighting |
|
Relay function
|
Clamp 15R |
|
Relay function
|
Clamp 87 |
|
Relay function
|
Fuel Pump |
|
Relay function
|
Oxygen Sensor |
|
Relay function
|
Fan, engine cooling |
|
Relay function
|
Front Fog Light |
|
Relay function
|
Windscreen Wiper |
|
Relay function
|
Windscreen Wiper Rest Heating |
|
Relay function
|
Sunroof |
|
Relay function
|
Secondary Air System |
|
Relay function
|
Seat Heating |
|
Assy./disassy. by qualified personnel required!
|
|
